Intersection Demos

# Create two intersecting lines
line1 = Line(LEFT * 3, RIGHT * 3, color=BLUE)
line2 = Line(DOWN * 2, UP * 2, color=GREEN)

# Find intersection
intersection_dot = intersect_lines(line1, line2)
intersection_dot.set_color(RED).scale(1.5)

# Labels
line1_label = Text("Line 1", font_size=24, color=BLUE).next_to(line1, DOWN)
line2_label = Text("Line 2", font_size=24, color=GREEN).next_to(line2, RIGHT)
intersection_label = Text("Intersection", font_size=20, color=RED).next_to(intersection_dot, UP * 1.5)

# Animate
self.play(Create(line1), Write(line1_label))
self.wait(0.5)
self.play(Create(line2), Write(line2_label))
self.wait(0.5)
self.play(FadeIn(intersection_dot, scale=0.5), Write(intersection_label))
self.wait(2)

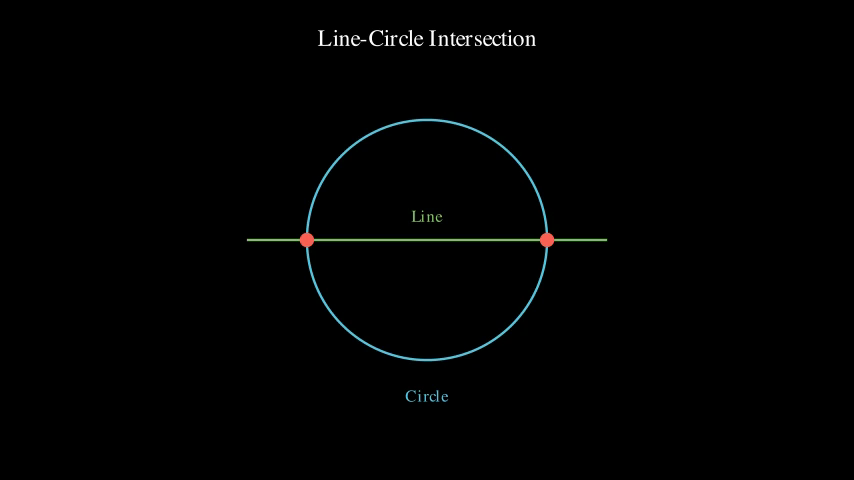

# Create circle
circle = Circle(radius=2, color=BLUE)

# Create line through center
line = Line(LEFT * 3, RIGHT * 3, color=GREEN)

# Find intersections
intersections = intersect_line_circle(line, circle)
for dot in intersections:
    dot.set_color(RED).scale(1.5)

# Labels
title = Text("Line-Circle Intersection", font_size=28).to_edge(UP)
circle_label = Text("Circle", font_size=20, color=BLUE).next_to(circle, DOWN, buff=0.5)
line_label = Text("Line", font_size=20, color=GREEN).next_to(line, UP, buff=0.3)

# Animate
self.add(title)
self.play(Create(circle), Write(circle_label))
self.play(Create(line), Write(line_label))
self.wait(1)
self.play(FadeIn(intersections, scale=0.3))
self.wait(2)

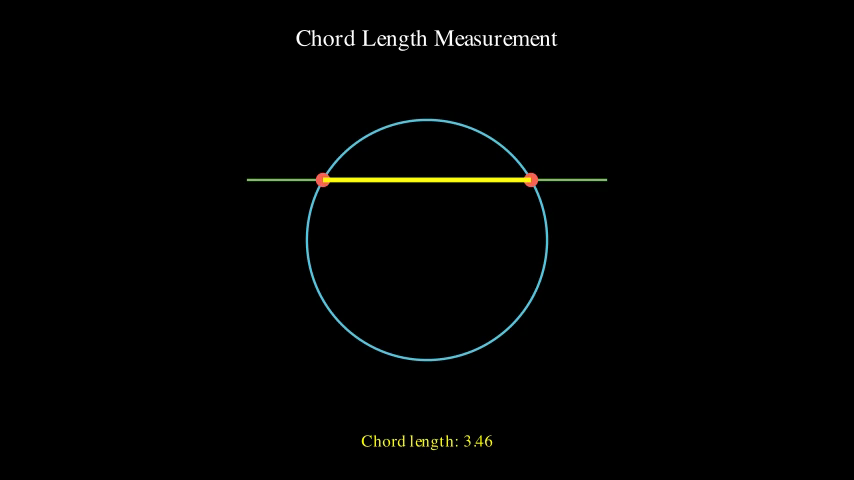

# Create circle
circle = Circle(radius=2, color=BLUE)

# Create line creating a chord
line = Line(LEFT * 3 + UP * 1, RIGHT * 3 + UP * 1, color=GREEN)

# Find intersections
intersections = intersect_line_circle(line, circle)

if len(intersections) == 2:
    # Create chord line segment
    p1 = intersections[0].get_center()
    p2 = intersections[1].get_center()
    chord = Line(p1, p2, color=YELLOW, stroke_width=8)

    # Calculate chord length
    chord_length = np.linalg.norm(p2 - p1)

    # Style dots
    for dot in intersections:
        dot.set_color(RED).scale(1.5)

    # Label
    title = Text("Chord Length Measurement", font_size=28).to_edge(UP)
    length_label = Text(f"Chord length: {chord_length:.2f}", font_size=20, color=YELLOW)
    length_label.to_edge(DOWN)

    # Animate
    self.add(title)
    self.play(Create(circle))
    self.play(Create(line))
    self.wait(1)
    self.play(FadeIn(intersections, scale=0.3))
    self.wait(1)
    self.play(Create(chord))
    self.play(Write(length_label))
    self.wait(2)

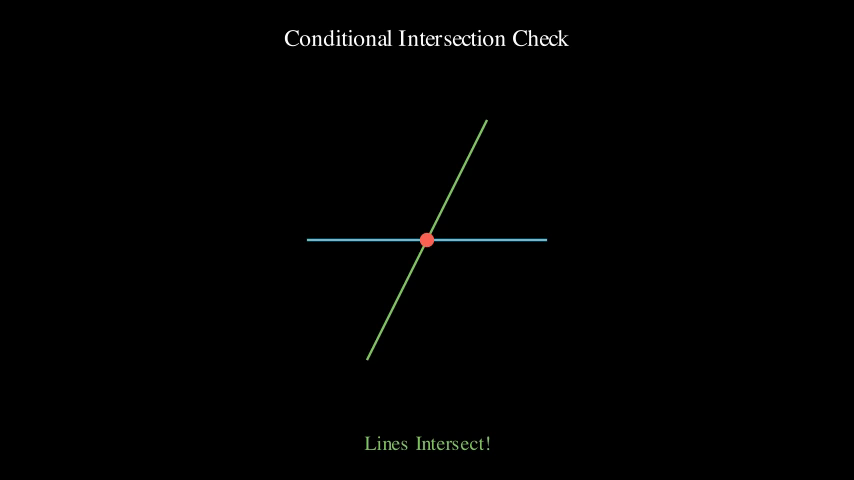

# Start with intersecting lines
line1 = Line(LEFT * 2, RIGHT * 2, color=BLUE)
line2 = Line(DOWN * 2 + LEFT, UP * 2 + RIGHT, color=GREEN)

# Function to check and display intersection

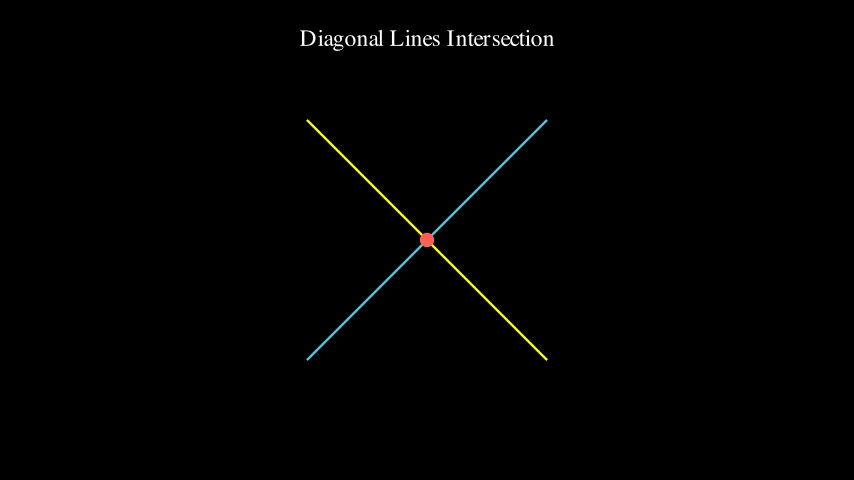

# Create two diagonal lines forming an X
line1 = Line(LEFT * 2 + DOWN * 2, RIGHT * 2 + UP * 2, color=BLUE)
line2 = Line(LEFT * 2 + UP * 2, RIGHT * 2 + DOWN * 2, color=YELLOW)

# Find intersection
intersection_dot = intersect_lines(line1, line2)
intersection_dot.set_color(RED).scale(1.5)

title = Text("Diagonal Lines Intersection", font_size=28).to_edge(UP)

# Animate
self.add(title)
self.play(Create(line1))
self.play(Create(line2))
self.wait(0.5)
self.play(FadeIn(intersection_dot, scale=0.3))
self.wait(2)

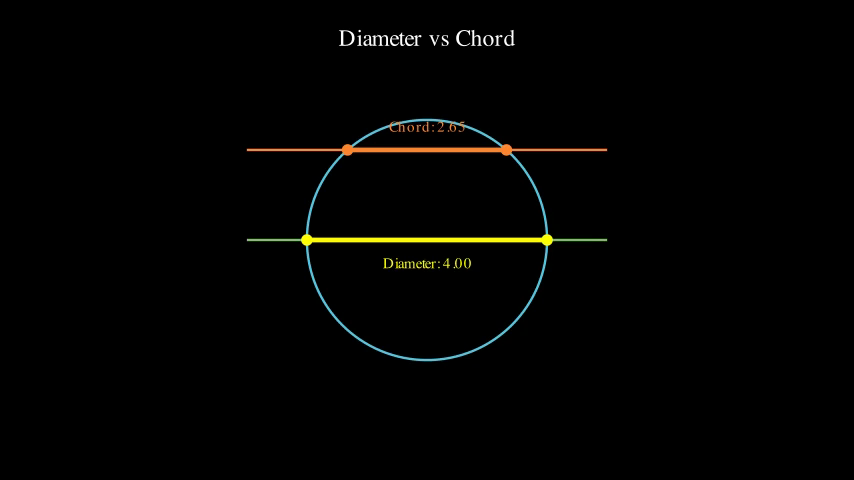

# Create circle
circle = Circle(radius=2, color=BLUE)

# Create horizontal line through center (creates diameter)
diameter_line = Line(LEFT * 3, RIGHT * 3, color=GREEN)

# Create another line creating a shorter chord
chord_line = Line(LEFT * 3 + UP * 1.5, RIGHT * 3 + UP * 1.5, color=ORANGE)

# Find intersections
diameter_intersections = intersect_line_circle(diameter_line, circle)
chord_intersections = intersect_line_circle(chord_line, circle)

# Calculate lengths
if len(diameter_intersections) == 2:
    p1, p2 = [d.get_center() for d in diameter_intersections]
    diameter_length = np.linalg.norm(p2 - p1)
    diameter = Line(p1, p2, color=YELLOW, stroke_width=8)
    diameter_label = Text(f"Diameter: {diameter_length:.2f}", font_size=18, color=YELLOW)
    diameter_label.next_to(diameter, DOWN, buff=0.3)

if len(chord_intersections) == 2:
    p3, p4 = [d.get_center() for d in chord_intersections]
    chord_length = np.linalg.norm(p4 - p3)
    chord = Line(p3, p4, color=ORANGE, stroke_width=8)
    chord_label = Text(f"Chord: {chord_length:.2f}", font_size=18, color=ORANGE)
    chord_label.next_to(chord, UP, buff=0.3)

for dot in diameter_intersections:
    dot.set_color(YELLOW).scale(1.2)
for dot in chord_intersections:
    dot.set_color(ORANGE).scale(1.2)

title = Text("Diameter vs Chord", font_size=28).to_edge(UP)

# Animate
self.add(title)
self.play(Create(circle))
self.wait(1)

# Show diameter
self.play(Create(diameter_line))
self.play(FadeIn(diameter_intersections, scale=0.3))
self.play(Create(diameter), Write(diameter_label))
self.wait(1)

# Show chord
self.play(Create(chord_line))
self.play(FadeIn(chord_intersections, scale=0.3))
self.play(Create(chord), Write(chord_label))
self.wait(2)

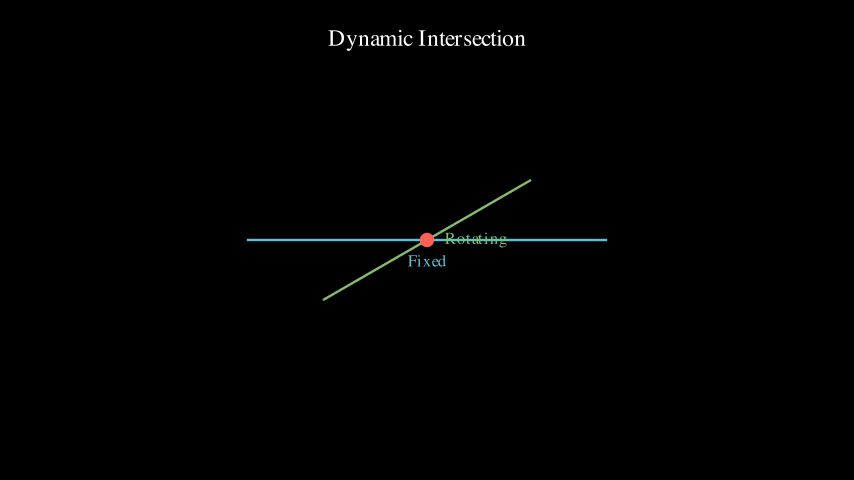

# Fixed horizontal line
fixed_line = Line(LEFT * 3, RIGHT * 3, color=BLUE)

# Rotating line
rotating_line = Line(DOWN * 2, UP * 2, color=GREEN)

# Dynamic intersection point using always_redraw
intersection_dot = always_redraw(
    lambda: intersect_lines(fixed_line, rotating_line).set_color(RED).scale(1.5)
)

# Labels
title = Text("Dynamic Intersection", font_size=28).to_edge(UP)
fixed_label = Text("Fixed", font_size=20, color=BLUE).next_to(fixed_line, DOWN)
rotating_label = Text("Rotating", font_size=20, color=GREEN).next_to(rotating_line, RIGHT, buff=0.3)

# Animate
self.add(title)
self.play(Create(fixed_line), Write(fixed_label))
self.play(Create(rotating_line), Write(rotating_label))
self.add(intersection_dot)
self.wait(1)

# Rotate the line - intersection point follows!
self.play(
    Rotate(rotating_line, angle=PI/3, about_point=ORIGIN),
    run_time=3
)
self.wait(1)

# Rotate more
self.play(
    Rotate(rotating_line, angle=PI/3, about_point=ORIGIN),
    run_time=3
)
self.wait(2)

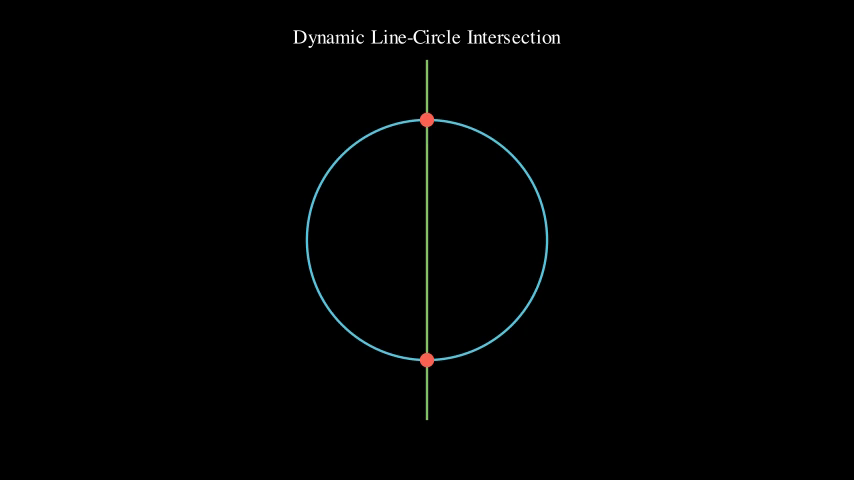

# Create circle
circle = Circle(radius=2, color=BLUE)

# Create rotating line
line = Line(LEFT * 3, RIGHT * 3, color=GREEN)

# Dynamic intersections using always_redraw
intersections = always_redraw(
    lambda: VGroup(*[
        dot.set_color(RED).scale(1.5)
        for dot in intersect_line_circle(line, circle)
    ])
)

title = Text("Dynamic Line-Circle Intersection", font_size=24).to_edge(UP)

# Animate
self.add(title)
self.play(Create(circle))
self.play(Create(line))
self.add(intersections)
self.wait(1)

# Rotate line - intersections follow!
self.play(
    Rotate(line, angle=PI/4, about_point=ORIGIN),
    run_time=3
)
self.wait(1)

# Continue rotating
self.play(
    Rotate(line, angle=PI/4, about_point=ORIGIN),
    run_time=3
)
self.wait(2)

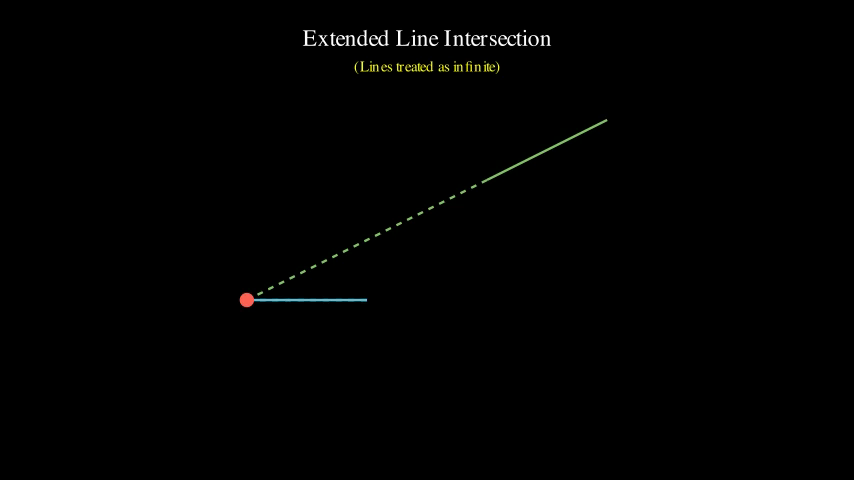

# Two line segments that don't physically touch
# but their infinite extensions intersect
line1 = Line(LEFT * 3 + DOWN, LEFT + DOWN, color=BLUE)
line2 = Line(RIGHT + UP, RIGHT * 3 + UP * 2, color=GREEN)

# Find intersection (lines extended infinitely)
intersection_dot = intersect_lines(line1, line2)
intersection_dot.set_color(RED).scale(1.5)

# Create dashed extension lines to show the concept
extension1 = DashedLine(
    line1.get_end(),
    intersection_dot.get_center(),
    color=BLUE,
    dash_length=0.1
)
extension2 = DashedLine(
    line2.get_start(),
    intersection_dot.get_center(),
    color=GREEN,
    dash_length=0.1
)

title = Text("Extended Line Intersection", font_size=28).to_edge(UP)
subtitle = Text("(Lines treated as infinite)", font_size=18, color=YELLOW).next_to(title, DOWN)

# Animate
self.add(title, subtitle)
self.play(Create(line1))
self.play(Create(line2))
self.wait(1)
self.play(Create(extension1), Create(extension2))
self.wait(0.5)
self.play(FadeIn(intersection_dot, scale=0.3))
self.wait(2)

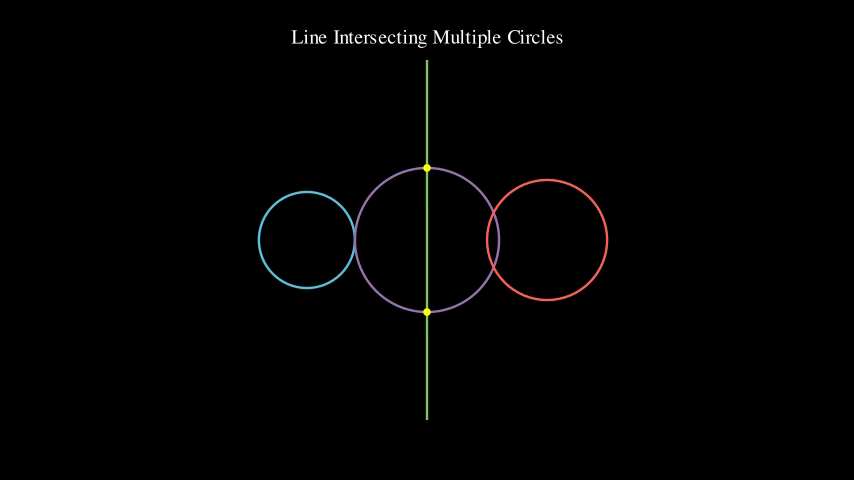

# Create vertical line
line = Line(DOWN * 3, UP * 3, color=GREEN)

# Create multiple circles of different sizes
circles = [
    Circle(radius=0.8, color=BLUE).shift(LEFT * 2),
    Circle(radius=1.2, color=PURPLE),
    Circle(radius=1.0, color=RED).shift(RIGHT * 2),
]

# Find all intersections
all_intersections = VGroup()
for circle in circles:
    intersections = intersect_line_circle(line, circle)
    for dot in intersections:
        dot.set_color(YELLOW).scale(0.8)
    all_intersections.add(intersections)

title = Text("Line Intersecting Multiple Circles", font_size=24).to_edge(UP)

# Animate
self.add(title)
self.play(Create(line))
self.play(*[Create(circle) for circle in circles])
self.wait(1)
self.play(FadeIn(all_intersections, scale=0.3))
self.wait(2)

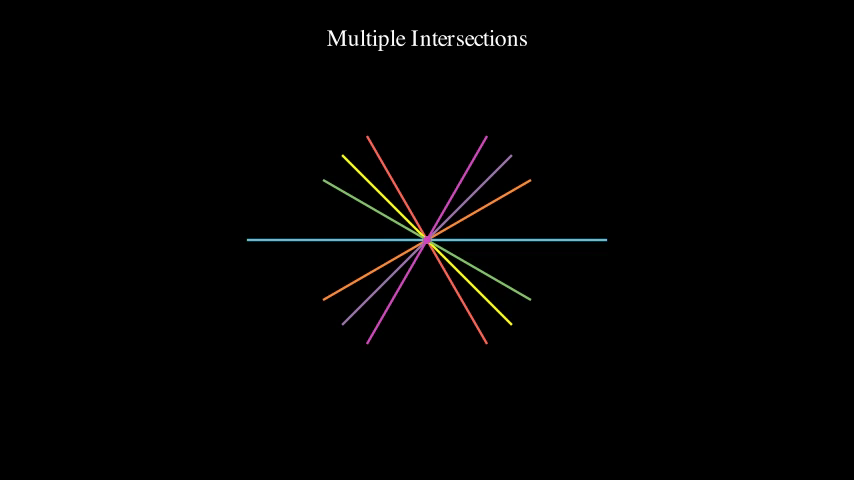

# Create a central line
center_line = Line(LEFT * 3, RIGHT * 3, color=BLUE)

# Create multiple lines intersecting the center line
angles = [PI/6, PI/4, PI/3, 2*PI/3, 3*PI/4, 5*PI/6]
colors = [RED, YELLOW, GREEN, ORANGE, PURPLE, PINK]

intersecting_lines = []
intersection_dots = []

for angle, color in zip(angles, colors):
    # Create a line rotated by the angle
    line = Line(DOWN * 2, UP * 2, color=color)
    line.rotate(angle, about_point=ORIGIN)
    intersecting_lines.append(line)

    # Find intersection with center line
    dot = intersect_lines(center_line, line)
    dot.set_color(color).scale(0.8)
    intersection_dots.append(dot)

title = Text("Multiple Intersections", font_size=28).to_edge(UP)

# Animate
self.add(title)
self.play(Create(center_line))
self.wait(0.5)

# Add lines and dots one by one
for line, dot in zip(intersecting_lines, intersection_dots):
    self.play(Create(line), FadeIn(dot, scale=0.3), run_time=0.5)

self.wait(2)

# Create circle
circle = Circle(radius=1.5, color=BLUE)

# Create line that misses the circle
line = Line(LEFT * 3 + UP * 3, RIGHT * 3 + UP * 3, color=GREEN)

# Find intersections (should be empty)
intersections = intersect_line_circle(line, circle)

# Labels
title = Text("No Intersection", font_size=28).to_edge(UP)
message = Text("Line misses the circle", font_size=20, color=RED).to_edge(DOWN)

# Animate
self.add(title)
self.play(Create(circle))
self.play(Create(line))
self.wait(1)

if len(intersections) == 0:
    self.play(Write(message))

self.wait(2)

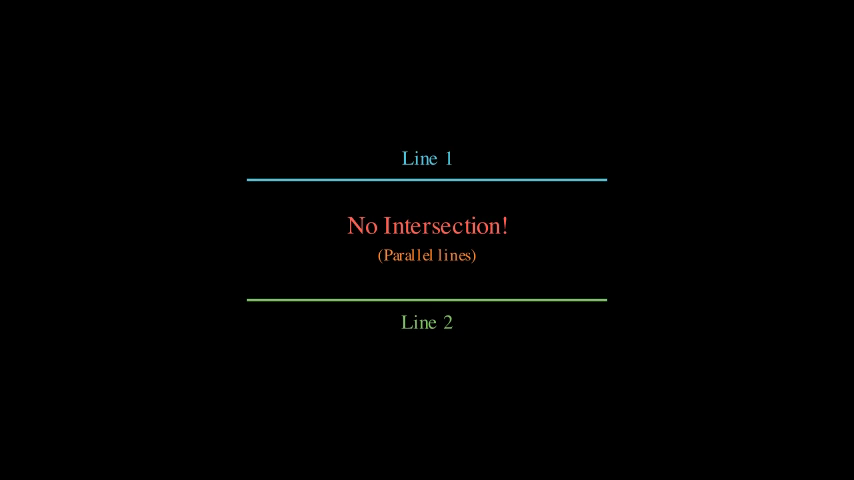

# Create parallel horizontal lines
line1 = Line(LEFT * 3, RIGHT * 3, color=BLUE).shift(UP)
line2 = Line(LEFT * 3, RIGHT * 3, color=GREEN).shift(DOWN)

# Try to find intersection
result = intersect_lines(line1, line2)

# Labels
line1_label = Text("Line 1", font_size=24, color=BLUE).next_to(line1, UP)
line2_label = Text("Line 2", font_size=24, color=GREEN).next_to(line2, DOWN)

# Check if result is empty
if len(result) == 0:
    no_intersection_text = Text("No Intersection!", font_size=30, color=RED)
    parallel_text = Text("(Parallel lines)", font_size=20, color=ORANGE)
    message = VGroup(no_intersection_text, parallel_text).arrange(DOWN)

# Animate
self.play(Create(line1), Write(line1_label))
self.play(Create(line2), Write(line2_label))
self.wait(1)
self.play(Write(message))
self.wait(2)

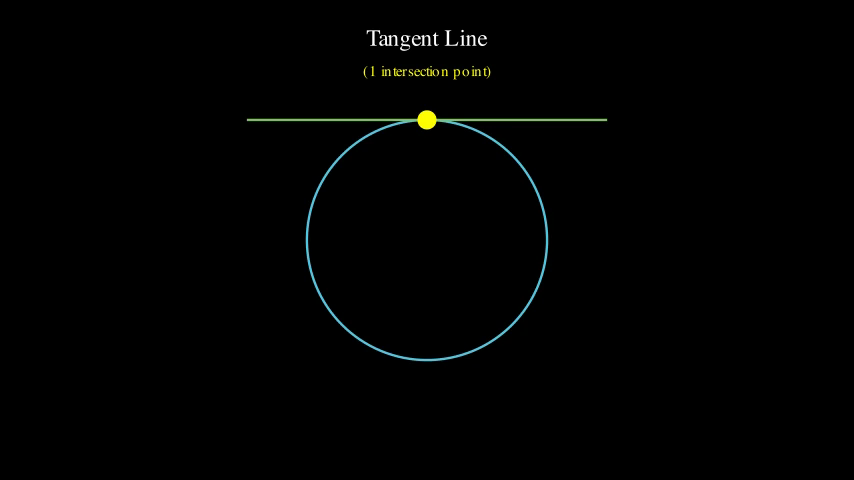

# Create circle
circle = Circle(radius=2, color=BLUE)

# Create tangent line at top
line = Line(LEFT * 3 + UP * 2, RIGHT * 3 + UP * 2, color=GREEN)

# Find intersection (should be one point)
intersections = intersect_line_circle(line, circle)
for dot in intersections:
    dot.set_color(YELLOW).scale(2)

# Labels
title = Text("Tangent Line", font_size=28).to_edge(UP)
subtitle = Text(f"({len(intersections)} intersection point)", font_size=18, color=YELLOW)
subtitle.next_to(title, DOWN)

# Animate
self.add(title, subtitle)
self.play(Create(circle))
self.play(Create(line))
self.wait(1)
self.play(FadeIn(intersections, scale=0.5))
self.wait(2)

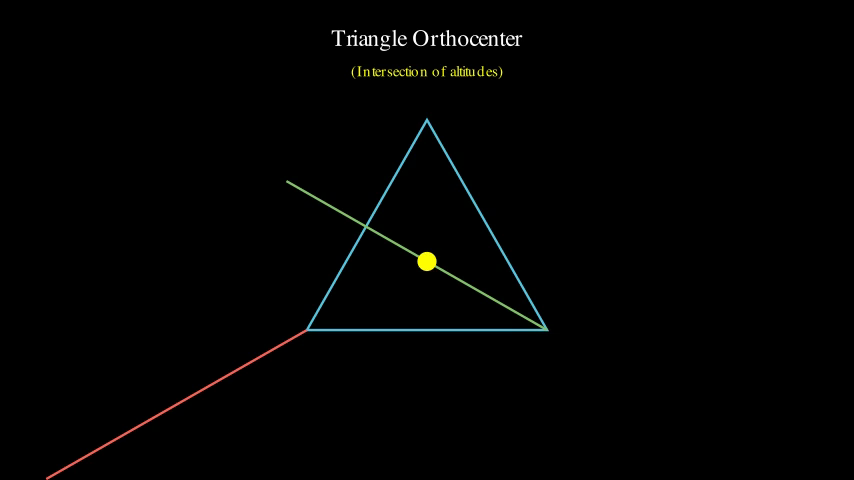

from robo_manim_add_ons import perp

# Create a triangle
triangle = Polygon(
    [-2, -1.5, 0],
    [2, -1.5, 0],
    [0, 2, 0],
    color=BLUE
)

vertices = triangle.get_vertices()

# Create perpendicular lines from each vertex to opposite side
# Perpendicular from vertex A to side BC
side_bc = Line(vertices[1], vertices[2])
perp1 = perp(side_bc, Dot(vertices[0]), length=5, placement="start").set_color(RED)

# Perpendicular from vertex B to side AC
side_ac = Line(vertices[0], vertices[2])
perp2 = perp(side_ac, Dot(vertices[1]), length=5, placement="start").set_color(GREEN)

# Find orthocenter (intersection of perpendiculars)
orthocenter = intersect_lines(perp1, perp2)
orthocenter.set_color(YELLOW).scale(2)

title = Text("Triangle Orthocenter", font_size=28).to_edge(UP)
subtitle = Text("(Intersection of altitudes)", font_size=18, color=YELLOW).next_to(title, DOWN)

# Animate
self.add(title, subtitle)
self.play(Create(triangle))
self.wait(1)
self.play(Create(perp1))
self.play(Create(perp2))
self.wait(1)
self.play(FadeIn(orthocenter, scale=0.3))
self.wait(2)
